Single vs Double Beam Overhead Crane Cost and Lead Time

What drives overhead crane cost

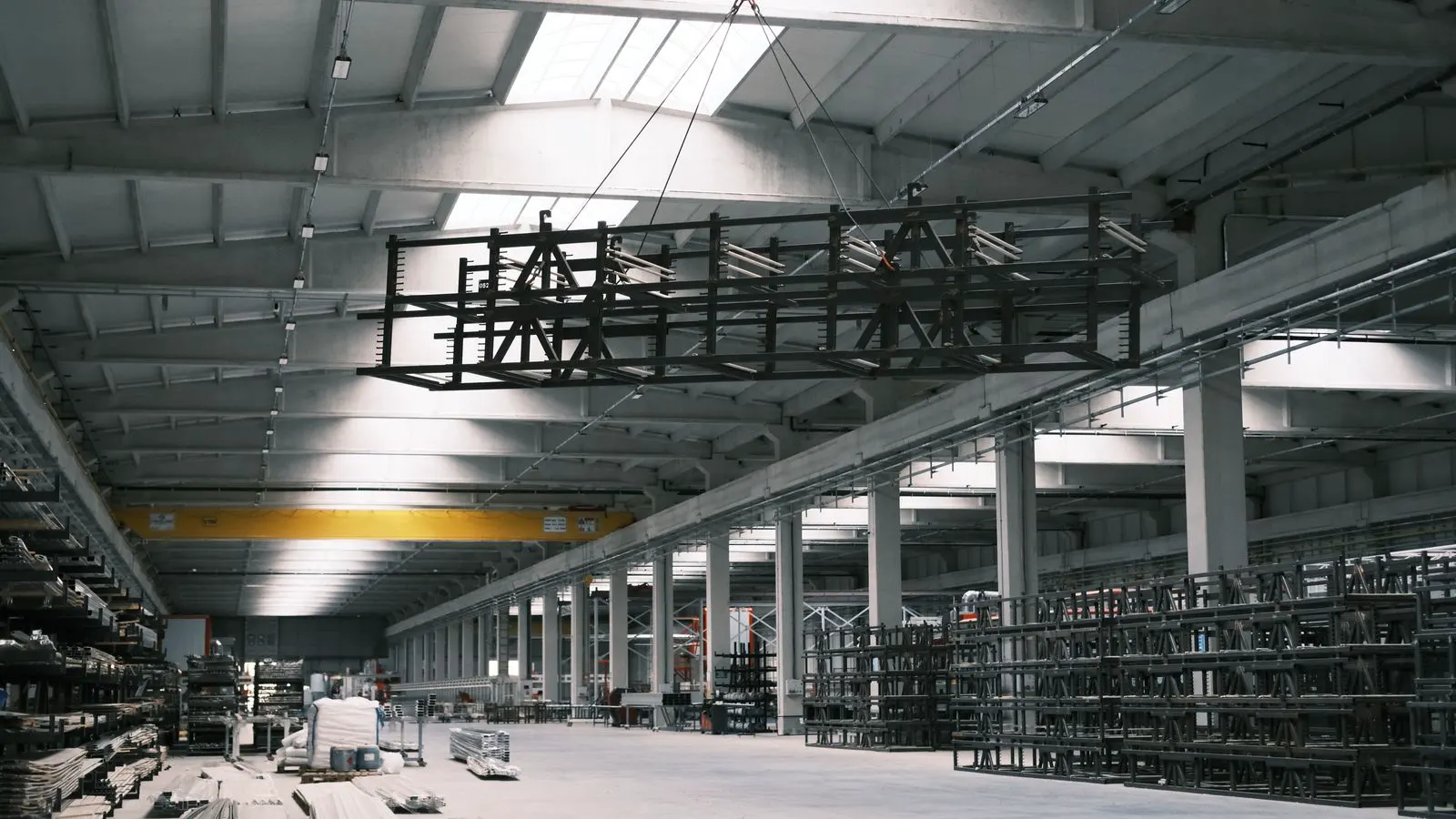

The price of an overhead crane starts with the steel package. For a single beam design, the main structure is one I-beam or box girder. The trolley rides on top or in a slot. For a double beam design, two parallel beams carry the load. The trolley sits between them.

Steel weight scales with span. A 15 meter span uses less steel than a 45 meter span, even if the load is identical. The load rating matters just as much. A crane rated for 5 tons needs different sections than one rated for 25 tons. Higher ratings require thicker flanges and webs. The moment of inertia increases as the load rating rises. This means the manufacturer must use heavier steel plate to resist bending and torsion. The cost of raw material alone can vary significantly between a light duty unit and a heavy industrial one.

Motor size is another cost driver. A single beam crane often uses one or two smaller motors. A double beam system may require two larger motors to handle the higher torque. The bigger the motor, the higher the cost and the longer the lead time. Motors are precision castings. A 30 kW motor costs more than a 15 kW motor, but the gap widens when you move into the 45 kW or higher range. The gearbox that drives the trolley also scales with motor size. A larger gearbox requires more castings and longer heat treatment times. These components are often the longest lead items in the entire order.

Duty class changes the material grade. A light duty crane for a small workshop may use standard carbon steel. A heavy duty crane for a steel mill may require higher grade steel and more robust end carriages. The more cycles per day the crane sees, the more the manufacturer spends on components. High duty class cranes use special bearing materials and reinforced trolley frames. The end carriages must withstand higher impact loads during start and stop sequences. The manufacturer adds extra welding, non destructive testing, and fatigue analysis to meet these higher standards.

Site conditions affect the final number. If the crane runs on a fixed beam, the cost is lower than if it needs a trolley track system. If the site requires special end supports, the price rises. If the building is high, the crane may need a separate hoisting system, which adds cost. You must also consider the floor load capacity. The end supports must transfer the weight of the crane and the lifted load to the building structure. If the existing supports are inadequate, the manufacturer must engineer new steel columns or reinforcement plates. This work is often done by the site contractor, but the crane manufacturer must provide the detailed drawings and load calculations.

What drives lead time

Lead time is not just the time to weld a beam. It is the sum of many steps. First, the manufacturer designs the structure. For a standard single beam, this may take a few weeks. For a double beam with custom load paths, it takes longer. The design phase includes structural calculations, motor sizing, and control system selection. The engineer must verify that the beam deflection is within acceptable limits. They must check the bearing pressures on the end carriages and the stress on the trolley wheels.

The second step is ordering materials. Steel plate, flanges, and web members must be cut and rolled. If the span is long, the beams may need to be fabricated in sections and spliced. This adds time. Steel availability varies by region and season. During peak construction periods, steel mills may have longer queues. The manufacturer must order raw materials before the steel can be cut and shaped. If the required steel grade is not in stock, the supplier may need to produce it in a special batch.

The third step is fabrication and testing. The beams are welded, painted, and tested. The motors and gearboxes are sourced. If the manufacturer does not stock the motor size, they wait for it. This is a common cause of delay. Welding requires skilled operators. The welds must pass visual inspection and sometimes ultrasonic testing. The painted surfaces require drying time between coats. The motors must be tested for insulation resistance and torque. Each of these steps takes time.

The fourth step is assembly and shipping. The crane is assembled in the factory, then disassembled into sections for transport. If the site is remote, the delivery time is longer. If the site requires a special rigging plan, the delivery may be delayed. Shipping a double beam crane is more complex than shipping a single beam. The beams must be strapped securely to prevent movement during transit. The trolley and hoist must be protected from moisture and dust. The manufacturer must coordinate with the freight carrier to ensure the load arrives intact.

How to write a clear RFQ

A vague request gets a vague quote. If you ask for a “crane for 10 tons,” you may get three different designs. To compare quotes fairly, your RFQ must specify the exact requirements.

Include the span length. This is the distance between the end supports. Include the load rating. This is the maximum load the trolley must lift. Include the duty class. This is the number of cycles per day and the average load. Include the track height. This is the height from the floor to the top of the beam. You should also specify the hook height and the trolley height. These dimensions determine the crane’s working envelope. If the crane must lift from a low floor to a high rack, the hook travel distance matters.

Include the site conditions. If the crane runs on a fixed beam, say so. If it needs a trolley track, say so. If the site has a high ceiling, say so. If the site requires a specific color or coating, say so. You should also describe the building structure. Is the crane supported by existing steel columns or concrete walls? What is the floor slab thickness? These details affect the end support design.

Include the accessories. If you need a hoist, a trolley, or a control system, list them. If you need a special hook block, say so. If you need a remote control, say so. The more specific you are, the more accurate the quote. You should also specify the control system type. Is it a pendant control, a remote control, or both? Do you need limit switches for the trolley and hoist? These small items add up in cost and complexity.

How to compare quotes fairly

Do not compare the total price alone. Compare the scope of work. If one quote includes a 5 ton hoist and the other includes a 10 ton hoist, the prices are not comparable. You must break down the quote into line items. Look at the cost of the beam, the trolley, the hoist, the motors, and the controls. This allows you to see where each manufacturer is spending money.

Check the duty class. If one crane is rated for 200 cycles per day and the other for 500 cycles per day, the price difference is not just a margin. It is a difference in material and testing. A higher duty class crane uses heavier components and more testing. The manufacturer must verify that the crane can handle the repeated stress cycles without failure. This requires more engineering time and more raw material.

Check the motor rating. A larger motor costs more and takes longer to source. If one quote uses a 15 kW motor and the other uses a 30 kW motor, the lead time may differ by weeks. You should also check the gearbox ratio. A higher ratio gearbox reduces motor speed but increases torque. This affects the hoisting speed and the trolley speed.

Check the included accessories. A quote may include the beam and trolley but not the hoist. Another quote may include the hoist but not the control system. Make a list of what is in and what is out. You should also check the warranty period. A longer warranty may indicate higher confidence in the product. It may also indicate that the manufacturer will be in business for several years to honor the claim.

A table of cost drivers

Cost Driver	Single Beam Impact	Double Beam Impact
Steel Weight	Lower, one primary structure	Higher, two parallel structures
Motor Size	Smaller motors, lower torque	Larger motors, higher torque
Fabrication Time	Shorter, simpler welds	Longer, complex load paths
End Supports	Standard brackets	Heavier, reinforced brackets
Testing	Basic load test	More extensive load test
Shipping	Easier to disassemble	Harder to disassemble, longer lead

How to reduce cost and lead time

You can reduce cost by simplifying the design. If you do not need a double beam crane, use a single beam. If you do not need a high duty class, use a lower one. If the site conditions allow, use a standard span and load. Standard sizes are cheaper because the manufacturer uses standard materials and standard parts. Custom sizes require custom fabrication and testing.

You can reduce lead time by ordering early. If you know the crane is needed in six months, order now. If you need it in three months, order today. You can also reduce lead time by choosing a manufacturer with a stocked motor size. Standard motor sizes are often in stock. Custom motor sizes require a special order. You should also provide the manufacturer with accurate site dimensions. If the site dimensions change after the order is placed, the lead time will increase.

You can reduce cost by comparing quotes from multiple manufacturers. Do not just look at the lowest price. Look at the total cost of ownership. A cheaper crane that fails early will cost more in the end. You should also consider the maintenance costs. A high duty class crane may require more frequent maintenance. A low duty class crane may require less maintenance. You should ask the manufacturer for a maintenance schedule and an estimated cost per cycle.

When to choose double beam

Choose a double beam crane when the load is heavy. If the load is above the typical single beam limit, a double beam is the safe choice. If the span is very long, a double beam may be more stable. If the site requires a high duty class, a double beam may be more reliable. A double beam crane distributes the load across two beams. This reduces the bending moment on each beam. It also provides a larger track width for the trolley. This improves stability during operation.

Choose a single beam crane when the load is moderate. If the load is below the typical double beam limit, a single beam is the economical choice. If the span is short, a single beam is easier to install. If the site requires a low ceiling, a single beam may be the only option. A single beam crane takes up less vertical space. It is easier to maintain because there are fewer components. It is also cheaper to replace if a part fails.
